ESAB BUDDY TIG 160 - Μηχανή συγκόλλησης TIG με υψίσυχνο - TIG & MMA (5 - 160 A)

ESAB BUDDY TIG 160 - Μηχανή συγκόλλησης TIG με υψίσυχνο - TIG & MMA (5 - 160 A)

ESAB BUDDY TIG 160 - Μηχανή συγκόλλησης TIG με υψίσυχνο - TIG & MMA (5 - 160 A)

Κατασκευαστής:
Κωδ.: 0700 300 681
Τιμή:     790,00€
Τεμ.:


  • ΠΕΡΙΓΡΑΦΗ
    • Buddy Tig 160 CE c/w Plug - Package incl. TIG Torch ET 17v 4m, 3 m welding cable and return cable kits.

      The Buddy Tig 160 is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high grade IGBT technology.

      Designed for durability

      The Buddy™ Tig 160 is a user friendly, robust and still light weight TIG machine, offering HF start and a stick (MMA) mode.
      The internal electronics are cooled by a highly efficient fan for added reliability and monitored by a thermal protection system. The machine has been equipped with three heat sinks which further extending the lifetime of the product.
      The casing has been designed to withstand harsh environments and is rated to IP 23S standard. The machine incorporates both a shoulder strap and a robust carry handle.

      Application:
      • Plant Fabrication and Maintenance
      • Site Maintenance / Repair
      • Civil Construction
      • General Fabrication
      • Agriculture

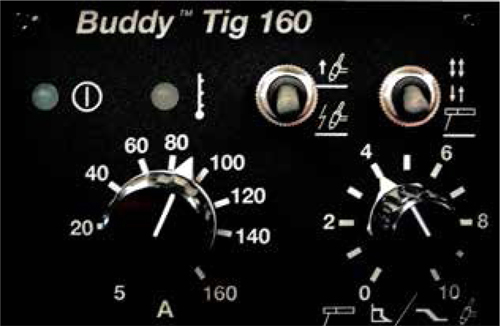

      Buddy Tig 160 Control Panel
      The control panel on the Buddy Tig 160 is very easy to use with one adjustment knob to set the weld current and one to set the slope down time in TIG mode or the arc force in MMA mode.


      TIG welding
      The Buddy™ Tig 160 provides superior TIG welding with smooth arc characteristics. The HF arc start prevents contamination of the weld material and electrode.
      The built in gas valve automatically controls the gas flow ensuring a low gas consumption.
      The operator can chose between 2 stroke and 4 stroke torch trigger mode.
      The machine can weld mild steel or stainless steel with or without filler material.

      MMA welding
      The Buddy™ Tig 160 provides a smooth DC (Direct Current) welding power which allows you to weld most metals such as alloyed and non-alloyed steel, stainless steel and cast iron.
      The arc force and hot start settings are adjusted automatically according to the set welding current giving excellent arc starts and welding performance across the amperage range of the machine.
      The Buddy™ Tig 160 can weld most electrodes from Ø1.6 - 3.2 mm.

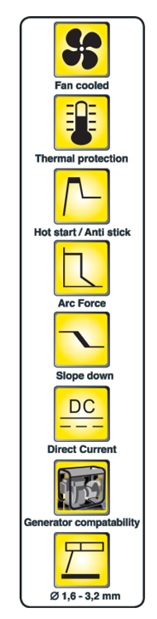

      Special Features

       Superior arc characteristics – Smooth welding conditions
      Generator compliant – Suitable for use with generators.
      Easy to use – Set the welding current and slope down / arc force and weld with excellent result
      Practical design - makes the power source easy to carry which enables use at almost any work site
      Robust design - withstands harsh environments
      Can be used with extended mains cable – provides extended working range.



      TECHNICAL DATA

      Mains Supply

      230 V / 1 ph   50/60 Hz

      Fuse (Slow)

      16 A

      Setting range MMA / TIG

      5 – 160 A

      Phase current I 1eff – MMA

      14,6 A

      Phase current I 1eff – TIG (DC)

      0,2 A

      Dimensions l x w x h

      310 x 140 x 230 mm

      Weight

      6,0 kg

      Enclosure class

      IP 23S

      Application classification

      S

      Maximum Output at 40°C, MMA

      60% duty cycle

      105 A / 24,2 V

      100% duty cycle

      85 A / 23,4 V

      Maximum Output at 40°C, TIG (DC)

      60% duty cycle

      105 A / 14,2 V










Περιγραφή
Buddy Tig 160 CE c/w Plug - Package incl. TIG Torch ET 17v 4m, 3 m welding cable and return cable kits.

The Buddy Tig 160 is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high grade IGBT technology.

Designed for durability

The Buddy™ Tig 160 is a user friendly, robust and still light weight TIG machine, offering HF start and a stick (MMA) mode.
The internal electronics are cooled by a highly efficient fan for added reliability and monitored by a thermal protection system. The machine has been equipped with three heat sinks which further extending the lifetime of the product.
The casing has been designed to withstand harsh environments and is rated to IP 23S standard. The machine incorporates both a shoulder strap and a robust carry handle.

Application:
• Plant Fabrication and Maintenance
• Site Maintenance / Repair
• Civil Construction
• General Fabrication
• Agriculture

Buddy Tig 160 Control Panel
The control panel on the Buddy Tig 160 is very easy to use with one adjustment knob to set the weld current and one to set the slope down time in TIG mode or the arc force in MMA mode.


TIG welding
The Buddy™ Tig 160 provides superior TIG welding with smooth arc characteristics. The HF arc start prevents contamination of the weld material and electrode.
The built in gas valve automatically controls the gas flow ensuring a low gas consumption.
The operator can chose between 2 stroke and 4 stroke torch trigger mode.
The machine can weld mild steel or stainless steel with or without filler material.

MMA welding
The Buddy™ Tig 160 provides a smooth DC (Direct Current) welding power which allows you to weld most metals such as alloyed and non-alloyed steel, stainless steel and cast iron.
The arc force and hot start settings are adjusted automatically according to the set welding current giving excellent arc starts and welding performance across the amperage range of the machine.
The Buddy™ Tig 160 can weld most electrodes from Ø1.6 - 3.2 mm.

Special Features

 Superior arc characteristics – Smooth welding conditions
Generator compliant – Suitable for use with generators.
Easy to use – Set the welding current and slope down / arc force and weld with excellent result
Practical design - makes the power source easy to carry which enables use at almost any work site
Robust design - withstands harsh environments
Can be used with extended mains cable – provides extended working range.



TECHNICAL DATA

Mains Supply

230 V / 1 ph   50/60 Hz

Fuse (Slow)

16 A

Setting range MMA / TIG

5 – 160 A

Phase current I 1eff – MMA

14,6 A

Phase current I 1eff – TIG (DC)

0,2 A

Dimensions l x w x h

310 x 140 x 230 mm

Weight

6,0 kg

Enclosure class

IP 23S

Application classification

S

Maximum Output at 40°C, MMA

60% duty cycle

105 A / 24,2 V

100% duty cycle

85 A / 23,4 V

Maximum Output at 40°C, TIG (DC)

60% duty cycle

105 A / 14,2 V
