ESAB BUDDY ARC 180 CE c/w Plug - Μηχανή συγκόλλησης ηλεκτροδίου MMA (5 - 180 A)

ESAB BUDDY ARC 180 CE c/w Plug - Μηχανή συγκόλλησης ηλεκτροδίου MMA (5 - 180 A)
ESAB BUDDY ARC 180 CE c/w Plug - Μηχανή συγκόλλησης ηλεκτροδίου MMA (5 - 180 A)

ESAB BUDDY ARC 180 CE c/w Plug - Μηχανή συγκόλλησης ηλεκτροδίου MMA (5 - 180 A)

Κατασκευαστής:
Κωδ.: 0700 300 680
Τιμή:     390,00€
Τεμ.:


  • ΠΕΡΙΓΡΑΦΗ
    • Package incl. 3 m welding cable and return cable kits.

      The Buddy™ Arc 180 is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high grade IGBT technology.

      The Buddy™ Arc 180 is a user friendly, robust and light weight stick (MMA) welding machine which also features a Live TIG arc mode. The internal electronics are cooled by a highly efficient fan for added reliability and monitored by a thermal protection system. The machine is equipped with three heat sinks which further extends the lifetime of the product. The casing has been designed to withstand harsh environments, is rated to IP 23S standard and incorporates both a shoulder strap and a carry handle.

      MMA welding
      Buddy™ Arc 180 provides a smooth DC (Direct Current) welding power which allows you to weld most metals such as alloyed and non-alloyed steel, stainless steel and cast iron. The arc force and hot start settings are adjusted automatically according to the set welding current giving excellent arc starts and welding performance across the amperage range of the machine. The Buddy™ Arc 180 can weld most electrodes from Ø1.6 -3.2 mm.

      TIG welding
      The Buddy™ Arc 180 can easily perform TIG-welding using a “Live Tig” start. Equip the power source with the optional Tig-Torch which has an in-built gas valve, a gas regulator and a bottle of gas and you are ready to weld mild steel or stainless steel with or without filler material.

      • Superior arc characteristics – Smooth welding conditions
      • Generator compliant – Suitable for use with generators
      • Easy to use – Set the welding current and weld with excellent result
      • Practical design – Makes the power source easy to carry which enables use at almost any work site
      • Robust design – Withstand harsh environments
      • Can be used with extended mains cable – provides extended working range

      Application:
      • Plant Fabrication and Maintenance
      • Site Maintenance / Repair
      • Civil Construction
      • General Fabrication
      • Agriculture

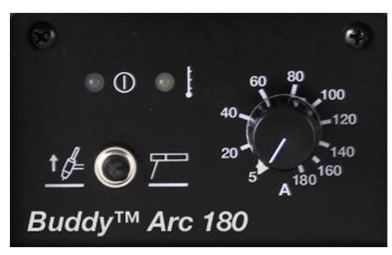

      BuddyTM Arc 180 Control Panel

      The control panel on the BuddyTM Arc 180 is very easy to use with only one knob for the setting of the weld current. A switch on the front panel provides easy selection of the MMA or TIG process.

      TECHNICAL DATA
      Mains Supply V/ph Hz
      230/1  50/60
      Fuse (Slow), A
      16
      Maximum Output at 40°C, MMA
      60% duty cycle, A/V
      125/25,0
      100% duty cycle, A/V
      100/24,0
      Maximum Output at 40°C, TIG
      60% duty cycle, A/V
      130/15,2
      100% duty cycle, A/V
      100/14,0
      Setting range MMA/TIG, A
      5 – 180
      Phase current I 1eff (TIG)
      12,5 A
      Phase current I 1eff (MMA)
      16,0 A
      Dimensions l x w x h, mm
      310 x 140 x 230
      Weight, kg
      6,0
      Enclosure class
      IP 23S
      Application class
      S



Περιγραφή
Package incl. 3 m welding cable and return cable kits.

The Buddy™ Arc 180 is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high grade IGBT technology.

The Buddy™ Arc 180 is a user friendly, robust and light weight stick (MMA) welding machine which also features a Live TIG arc mode. The internal electronics are cooled by a highly efficient fan for added reliability and monitored by a thermal protection system. The machine is equipped with three heat sinks which further extends the lifetime of the product. The casing has been designed to withstand harsh environments, is rated to IP 23S standard and incorporates both a shoulder strap and a carry handle.

MMA welding
Buddy™ Arc 180 provides a smooth DC (Direct Current) welding power which allows you to weld most metals such as alloyed and non-alloyed steel, stainless steel and cast iron. The arc force and hot start settings are adjusted automatically according to the set welding current giving excellent arc starts and welding performance across the amperage range of the machine. The Buddy™ Arc 180 can weld most electrodes from Ø1.6 -3.2 mm.

TIG welding
The Buddy™ Arc 180 can easily perform TIG-welding using a “Live Tig” start. Equip the power source with the optional Tig-Torch which has an in-built gas valve, a gas regulator and a bottle of gas and you are ready to weld mild steel or stainless steel with or without filler material.

  • Superior arc characteristics – Smooth welding conditions
  • Generator compliant – Suitable for use with generators
  • Easy to use – Set the welding current and weld with excellent result
  • Practical design – Makes the power source easy to carry which enables use at almost any work site
  • Robust design – Withstand harsh environments
  • Can be used with extended mains cable – provides extended working range

Application:
• Plant Fabrication and Maintenance
• Site Maintenance / Repair
• Civil Construction
• General Fabrication
• Agriculture

BuddyTM Arc 180 Control Panel

The control panel on the BuddyTM Arc 180 is very easy to use with only one knob for the setting of the weld current. A switch on the front panel provides easy selection of the MMA or TIG process.

TECHNICAL DATA
Mains Supply V/ph Hz
230/1  50/60
Fuse (Slow), A
16
Maximum Output at 40°C, MMA
60% duty cycle, A/V
125/25,0
100% duty cycle, A/V
100/24,0
Maximum Output at 40°C, TIG
60% duty cycle, A/V
130/15,2
100% duty cycle, A/V
100/14,0
Setting range MMA/TIG, A
5 – 180
Phase current I 1eff (TIG)
12,5 A
Phase current I 1eff (MMA)
16,0 A
Dimensions l x w x h, mm
310 x 140 x 230
Weight, kg
6,0
Enclosure class
IP 23S
Application class
S
