The Buddy™ Arc 145 is a user friendly, robust and light weight stick (MMA) welding machine. The internal electronics are cooled by a highly efficient fan for added reliability and monitored by a thermal protection system. The machine is equipped with three heat sinks which further extends the lifetime of the product. The casing has been designed to withstand harsh environments and incorporates both a shoulder strap and a carry handle.
MMA welding
Buddy™ Arc 145 provides a smooth DC (Direct Current) welding power which allows you to weld most metals such as alloyed and non-alloyed steel, stainless steel and cast iron.
The Buddy Arc 145 can weld most electrodes from Ø1,6 -2,4 mm and some Ø3,2.
- Superior arc characteristics – Smooth welding conditions
- Generator compliant – Suitable for use with generators
- Easy to use – Set the welding current and weld with excellent result
- Practical design – Makes the power source easy to carry which enables use at almost any work site
- Robust design – Withstand harsh environments
- Can be used with extended mains cable – provides extended working range
Application:
• Plant Fabrication and Maintenance
• Site Maintenance / Repair
• Civil Construction
• General Fabrication
• Agriculture

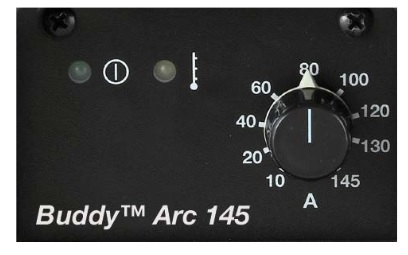

BuddyTM Arc 145 Control Panel
The control panel on the Buddy
TM Arc 145 is very easy to use with only one knob for the setting of the weld current.
|
TECHNICAL DATA
|
|
Mains Supply V/ph Hz
|
230/1 50/60
|
|
Fuse (Slow), A
|
16
|
|
Maximum Output at 40°C, MMA
|
|
60% duty cycle, A/V, 3ph
|
70/22,8
|
|
100% duty cycle, A/V, 3ph
|
55/22,2
|
|
Setting range MMA / TIG, A
|
10 - 145
|
|
Open circuit voltage, V
|
63
|
|
Phase current I 1eff (MMA)
|
10,8 A
|
|
Dimensions l x w x h, mm
|
280 x 120 x 220
|
|
Weight, kg
|
3,6
|
|
Enclosure class
|
IP 23S
|
|
Application class
|
S
|
