TECHNICAL DATA
|
|
Pipe Ø (OD)
|
75mm – 360 mm
|
Wall Thickness
|
20 mm (metals)
|
50 mm (plastics)
|
|
Cuts the following pipe materials
|
Steel, Copper, Cast iron, Stainless steel, Acid-resistant steel, Multilayered materials and all plastics
|
Voltage / Power
|
230V / 2500 W
|
No-Load speed
|
I=1900 r/min, II=2885 r/min
|
Blade diameter
|
165 mm
|
Mounting bore
|
62 mm
|
Weight
|
17,5 kg
|
Loading capacity of supports
|
465 kg (3 supports)
|
Electronical unit
|
Blade speed preselection, automatic fuse, soft start, torque control
|
Speed preselection
|
I= Stainless steel and acid-resistant steel, II= all other materials
|
Other characteristics
|
·Electronics protecting the motor from overload and “traffic lights” guiding the operator.
·Laser indicator for precise cutting.
·Improved adjustment mechanism for straight cutting.
·Professional quality - Made in EU.
|

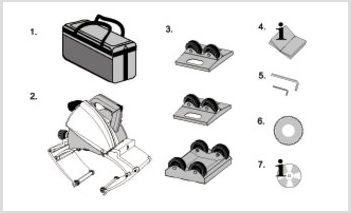

Στην τιμή περιλαμβάνονται:
1. PipeCut Bag 3

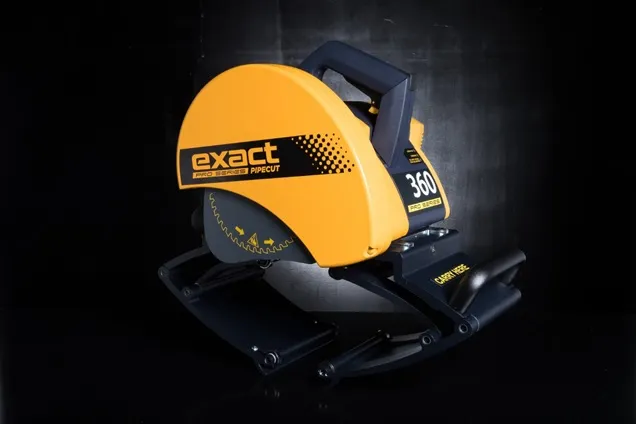

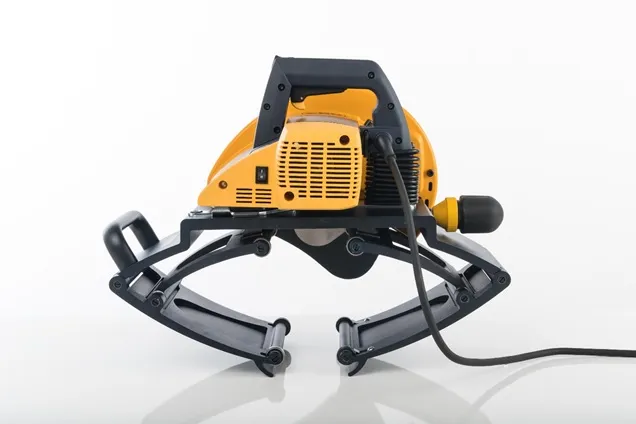

2. Exact PipeCut 360 Pro Series pipe saw

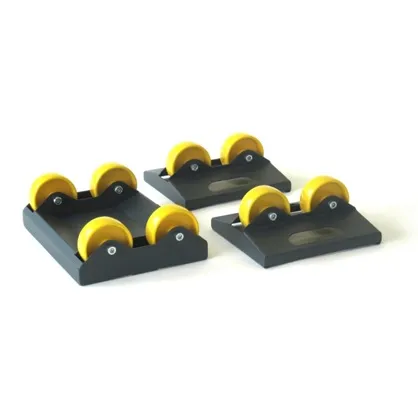

3. Pipe Support 360 Double and 2x360 Single and tool for changing blade in the bag
4. Operating instructions
5. Hex socket key 5 mm and 2 mm fitted to the machine
6. TCT 165 blade fitted to the machine
7. DVD video disc including instructions
![]() |
