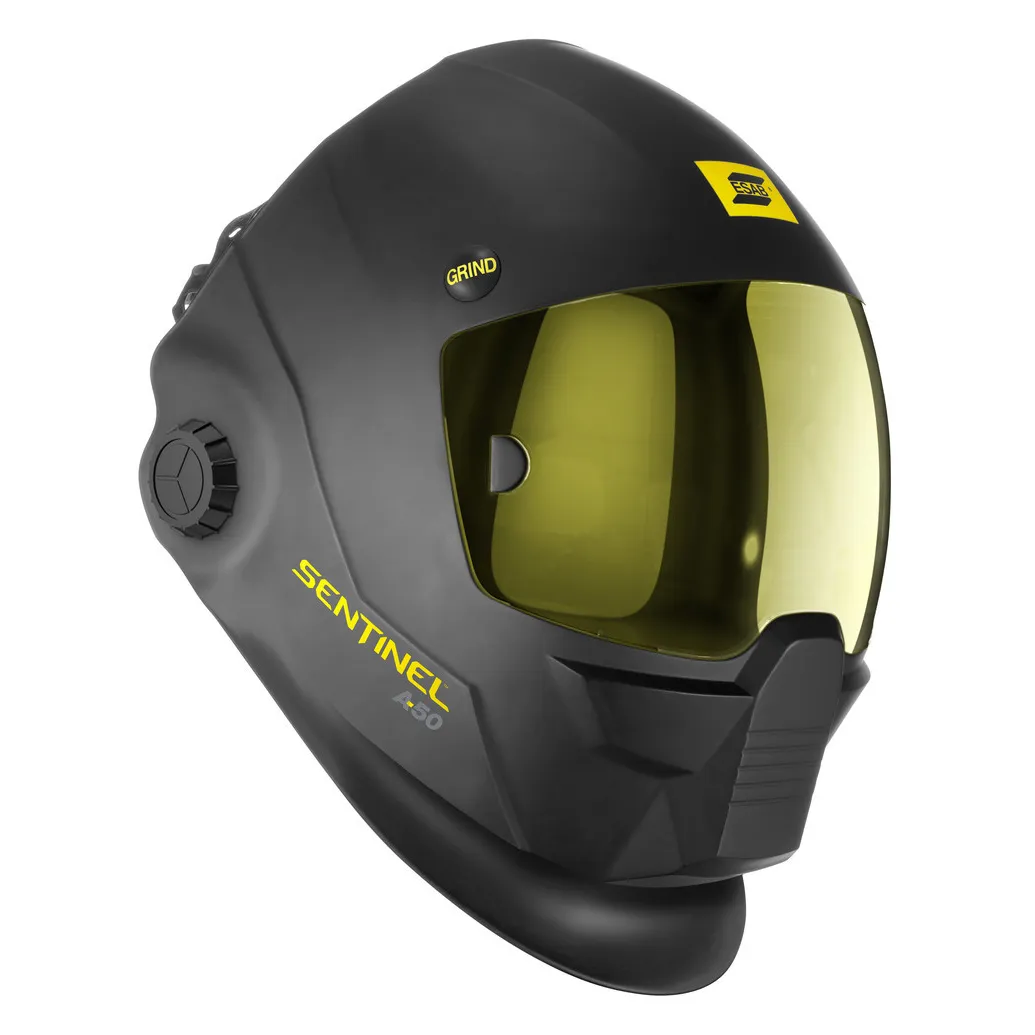

Ηλεκτρονική μάσκα συγκόλλησης SENTINEL A50

Περιγραφή

Revolutionary high-performance automatic welding helmet offering comfort, large lens and next generation technology

Revolutionary Shell Design. High Impact Resistance Nylon

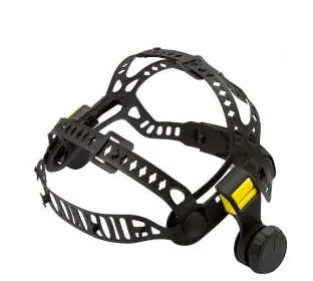

Halo™ Headgear. Ergonomic, infinitely-adjustable 5 point head gear provides extreme comfort and balance. Low-profile design, central pivot point allows for maximum head clearance while helmet is in the up position
100 x 60mm viewing area. 1/1/1/2 – 5-13 ADF

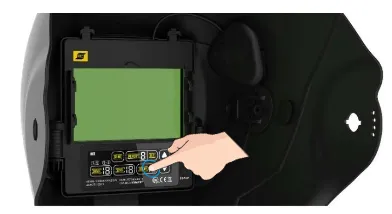

Color touch screen control panel with 8 separate memory settings and externally activated shade 4 Grind Button
Hard hat adapter option available for use with ESAB hard hat

SENTINEL A50 SPECIFICATIONS
Cartridge Dimensions	133 x 114 x 9mm
Viewing Area	100 x 60mm
Lens Shade	DIN 5-8 / 9-13
Power Supply	Solar cell plus battery replaceable. (2*CR2450 lithium). Alerts when low battery.
Sensors	4
Switch Time	1/25,000 s. from Light to Dark
Classification	1/1/1/2
Welding Process	Oxy-fuel Cutting Plasma Cutting Grinding GMAW Welding (MIG/MAG) GTAW Welding (TIG) PAW Welding (Plasma Arc Welding) SMAW/MMA Welding (Stick)
Standards	DIN plus, CE, EN175, EN 379, EN166, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1
Weight	640 g

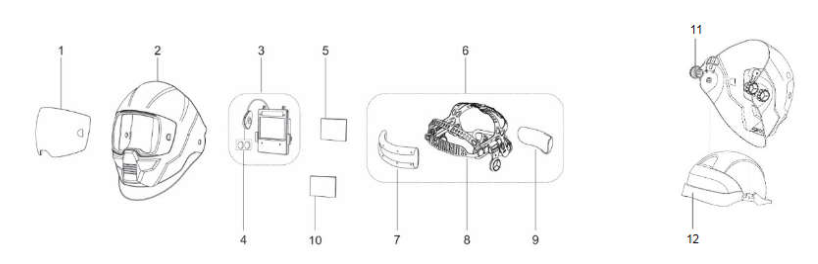

WEAR AND SPARE PARTS
1	Front Cover Lens Clear HD	0700000823
1	Front Cover Lens Amber HD	0700000824
1	Front Cover Lens Clear	0700000802
1	Front Cover Lens Amber	0700000803
2	SENTINEL Helmet Shell	0700000804
3	Auto-Darkening Filter (excl. batteries)	0700000806
4	2 x CR2450 lithium battery	0700000807
5	Inside Cover Lens	0700000808
6	Headgear Assembly (including sweat bands)	0700000809
7	Front Sweat Band	0700000810
8	Headgear	0700000811
9	Rear Sweat Band	0700000812
10	Magnifying glass +1.0 diopter	0367951001
10	Magnifying glass +1.5 diopter	0367951002
10	Magnifying glass +2.0 diopter	0367951003
10	Magnifying glass +2.5 diopter	0367951004
11	SENTINEL Hard Hat Adapter*	0700000619
12	Concept Hard Hat Yellow	0700000052
12	Concept Hard Hat White	0700000135
	SENTINEL Bandana	0700000821
	SENTINEL Protective Hood	0700000828

*For use with Concept Hard Hat. Hard Hat Adapter replaces Headgear 0700000809 with Hard Hat Combination.

Εξαρτήματα
	0700000828		Sentinel Protective Hood	0,00€
	Sentinel Protective Hood	0,00€

	0700000821		Sentinel Bandana	0,00€
	Sentinel Bandana	0,00€

	0700000803		Front Cover Lens Amber	0,00€
	Front Cover Lens Amber	0,00€

	0700000802		Front Cover Lens Clear	6,82€
	Front Cover Lens Clear	6,82€

	0700000810		Front Sweat Band	7,19€
	Front Sweat Band	7,19€

	0700000811		Headgear	0,00€
	Headgear	0,00€

	0700000809		Headgear Assembly (incl. sweat bands)	0,00€
	Headgear Assembly (incl. sweat bands)	0,00€

	0700000808		Inside Cover Lens	0,00€
	Inside Cover Lens	0,00€

	0367951001		Magnifying Lens +1.0 Diopter	22,32€
	Magnifying Lens +1.0 Diopter	22,32€

	0367951002		Magnifying Lens +1.5 Diopter	22,32€
	Magnifying Lens +1.5 Diopter	22,32€

	0367951003		Magnifying Lens +2.0 Diopter	22,32€
	Magnifying Lens +2.0 Diopter	22,32€

	0367951004		Magnifying Lens +2.5 Diopter	22,32€
	Magnifying Lens +2.5 Diopter	22,32€
