• Βand saws, pivoting movement, gravity feed, steel and aluminum cut, miter
• Manual bandsaw or with gravity lowering mitre cutting from 0° to 60° left.
• Vice with quick clamping. Easy stops at 0°, 45° and 60° left, graduated plate to identify different angles.

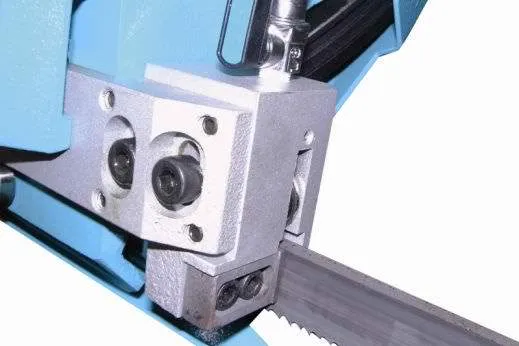

• Band guides with bearings for blade alignment, pulleys with 260 mm diameter.
• AUTOCUT GH Version with “3 Ways” Selector:
• A Manual cut.
• B Manual cut with self-brake.
• C Automatic cut with adjustable down-feed rate and stop at the end of the cut. The user can move manually the sawframe close to the material,then let the machine makes the cut adjusting only the down-feed rate.
• Cutting capacity at 90° round till 185 mm., square till 180 mm. and rectangular till 200x150 mm.
Technical Data
|
Area angular cut
|
°
|
90 +30
|
|
Cutting capacity at 90°: round / square / rectangular
|
mm.
|
185 / 180 / 200x150
|
|
Blade dimensions
|
mm.
|
2080 x 20 x 0.9
|
|
Blade Motor Power
|
KW
|
0.8
|
|
Blade speed
|
mt/min.
|
30/60
|
|
Dimensions ( B x L x H )
|
mm.
|
600x1200x1700
|
|
Height of Work-table
|
mm.
|
900
|
|
Weight
|
Kg
|
215
|
|
Type of functioning
|
|
Manual/Gravity
|
|
Suitable for cutting:
|
|
Steel / cast iron / aluminium
|
